Key features & benefits
Machined from aerospace-grade aluminium billet for maximum strength and durability
Optimised design for lightweight and stiffness
Modular throttle and clutch assembly
Adjustable brake pedal pad positions with anti-slip surface for extra driver comfort

Brake pedal pivoted by needle roller bearings for smooth pedal travel

Locating pins for driver pre-set positions
7x M6 keenserts for false floor location
Centre seal ABS compatible cylinders
Adjustable throttle and clutch pedal positions
Gas damper on throttle for positive pedal feel
Adjustable bias cable and knob included
Gas strut included for ease of adjustment

Specification
180mm of adjustment
Total weight 6.3kg (3 pedals less cylinders)
Pedal ratio 4.8:1
Designed for use with MAR96 master cylinder

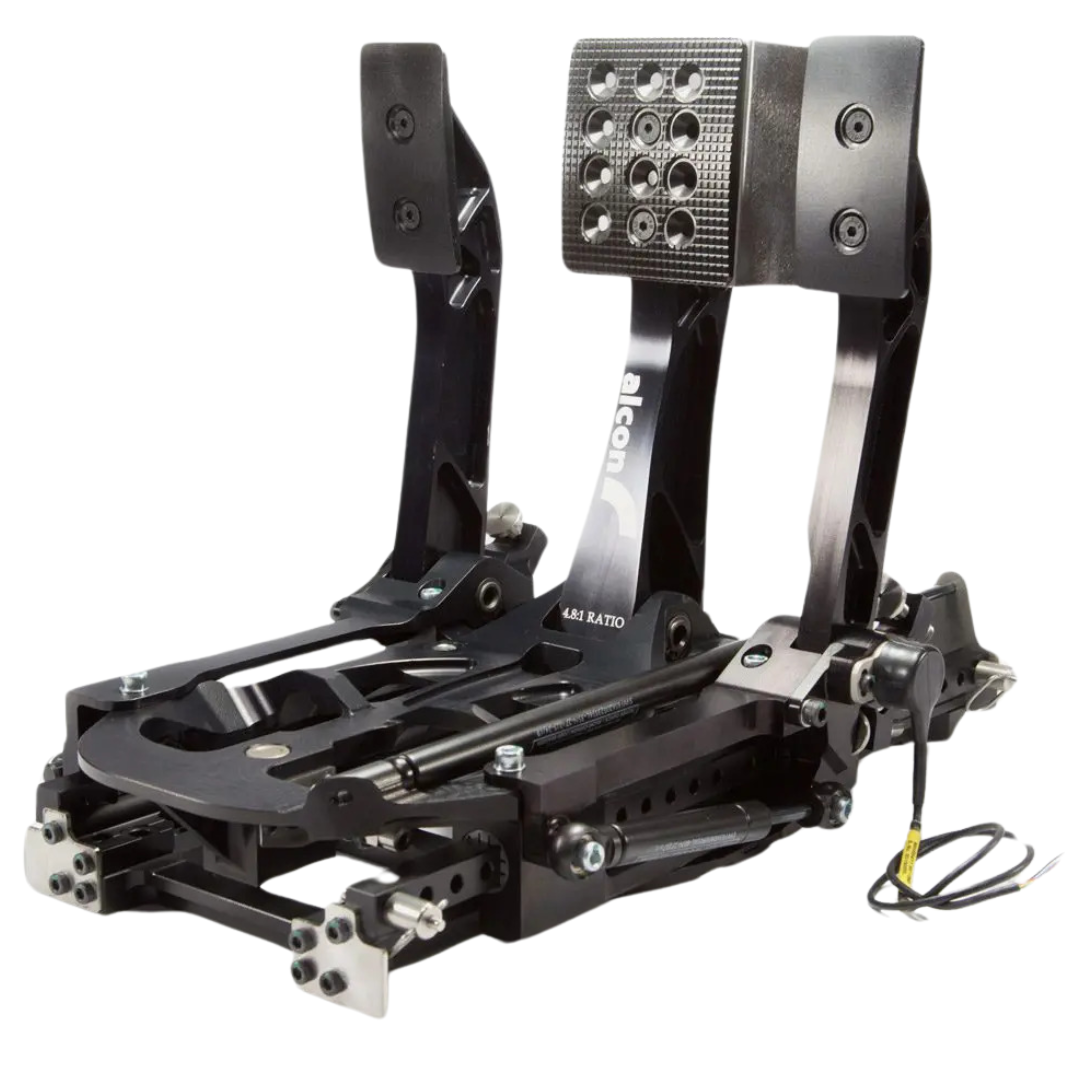

Available in three configurations: 1 pedal (brake), 2 pedals (brake / clutch or brake / throttle) or 3 pedals (throttle / brake / clutch), this modular pedal box is mounted on two linear bearing rails using high performance polymers as a sliding surface, providing smooth adjustment and a maintenance free mechanism.

Using the finest materials and the latest manufacturing processes, all Alcon products are designed, manufactured and rigorously tested in-house in Tamworth, UK.
