Air duct inlet:

In order to transport the air to the brake ventilation outlet, a suitable inlet is essential. The E88 and E82 with M package bumper already have factory inlet ducts in the front bumper, but these end in the middle of the wheel arch. In order not to swirl the air randomly in the wheel arch, we have developed a new duct, which is replaced 1 to 1 by the OEM duct and connected to our anchor plate by means of a hose connection.

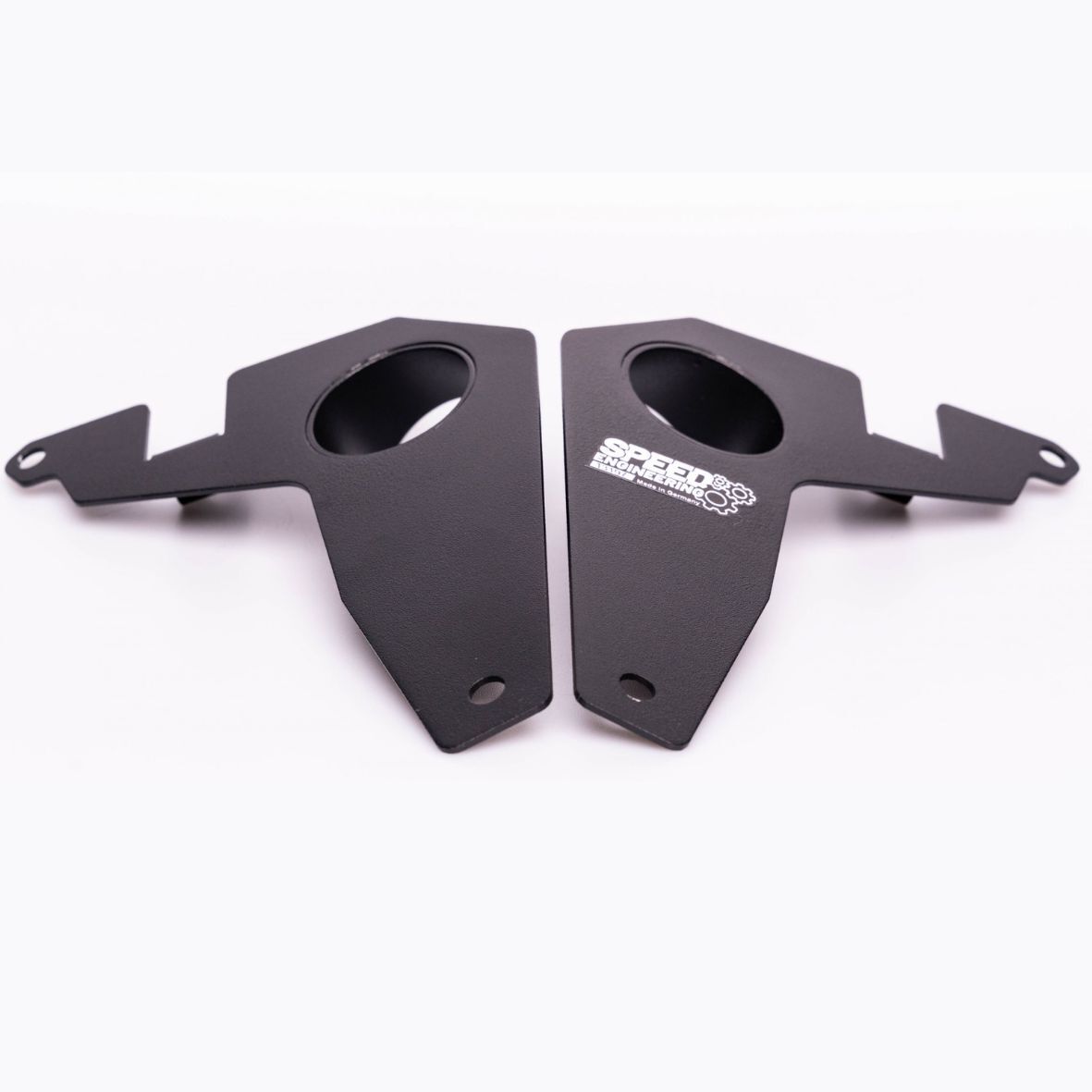

Air duct outlet (anchor plate):

We use the channeling of the air flow to the center of the brake disc to utilize the turbine effect to cool the disc from the inside. In doing so, we direct the airflow at the disc at an angle that reduces scattering losses and makes maximum efficient use of the available air volume. Thanks to the choice of powdered aluminum material, the component is sufficiently strong and at the same time light and robust.

Included in the scope of delivery:

• 1x air duct inlet for the left front axle
• 1x air duct inlet for the right front axle
• 1x anchor plate for the left front axle
• 1x anchor plate for the right front axle
• 2x air hose (2 meters)
• 4x hose clamps

Article is suitable for:

• With M package bumper:
• BMW E88
• BMW E82 (with the exception of the 1 Series M Coupe)
