INSTALLATION INSTRUCTIONS

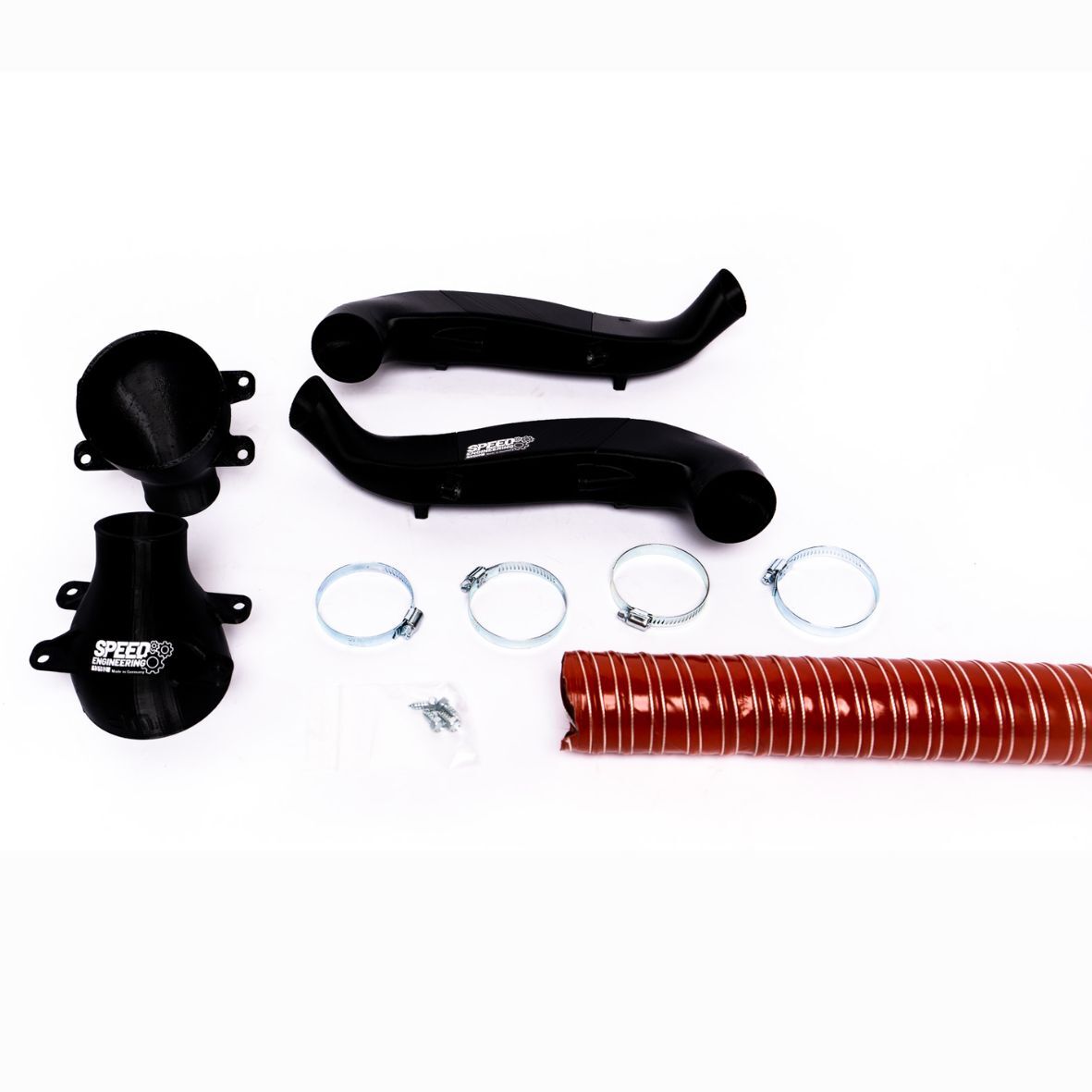

With this kit, we have found a way to cool the brakes of the Fiesta ST MK7 as efficiently as possible using a wear-free hose assembly.

Admission:

In order to cool a brake effectively, it is necessary to get as much air as possible to it. We also make use of this in the Fiesta ST by utilizing the air flow under the vehicle through cleverly positioned inlets. Our inlets are integrated into the underbody and do not represent the lowest point of the vehicle despite the optimum airflow surface.

Outlet:

Here too, the brake disk must be supplied with air as centrally as possible. The brake disk of the Fiesta ST does not have a large pot. A conventional solution using an armature plate would therefore result in the inner surface of the friction disk being cooled on one side. However, in order to make use of the turbine effect of the brake disc, we have developed a brake cooling system which is mounted on the wishbone and flows onto the center of the disc regardless of the wheel position. It is simply attached using existing locking pins and without any permanent changes to the vehicle.

• This article will only be produced after receipt of order! This may result in a delivery time of 4-6 weeks.

Article is suitable for

• Ford Fiesta ST MK7
