Air duct inlet

In order to transport the air to the brake ventilation outlet, a suitable inlet is essential. The pre-facelift I30N already has intake ducts in the front bumper, but these end in the middle of the wheel arch. Previously, we used these ducts to prevent the air from swirling randomly in the wheel arch. We have now developed an extension to the air duct which can be fitted with minimal effort and connects to the outlet.

Generation 2

The second generation, which is now available, allows the OEM ducts to be retained, as we have developed inlet funnels for the wishbone. These are simply screwed under the wishbone and have an opening through the wishbone with a hose connection to connect the air inlet surface to the anchor plate using a short air hose.

The advantages are obvious: a shorter hose can be used to generate fewer flow losses. This also makes the system more wear-resistant and full steering wheel impacts no longer cause damage to the hose. The final advantage is the ease of installation.

Air duct outlet

In doing so, we direct the airflow onto the panel at a defined angle in order to avoid scattering losses and make maximum efficient use of the available air volume. Thanks to the lightweight design in combination with powder-coated aluminum, the anchor plate is sufficiently strong and at the same time light and robust. During and after the braking process, the suspension joint is subjected to enormous heat stress as it is extremely close to the hot brake disk. Wear increases disproportionately. For this reason, this anchor plate has an additional shield for the bearing, which increases its durability.

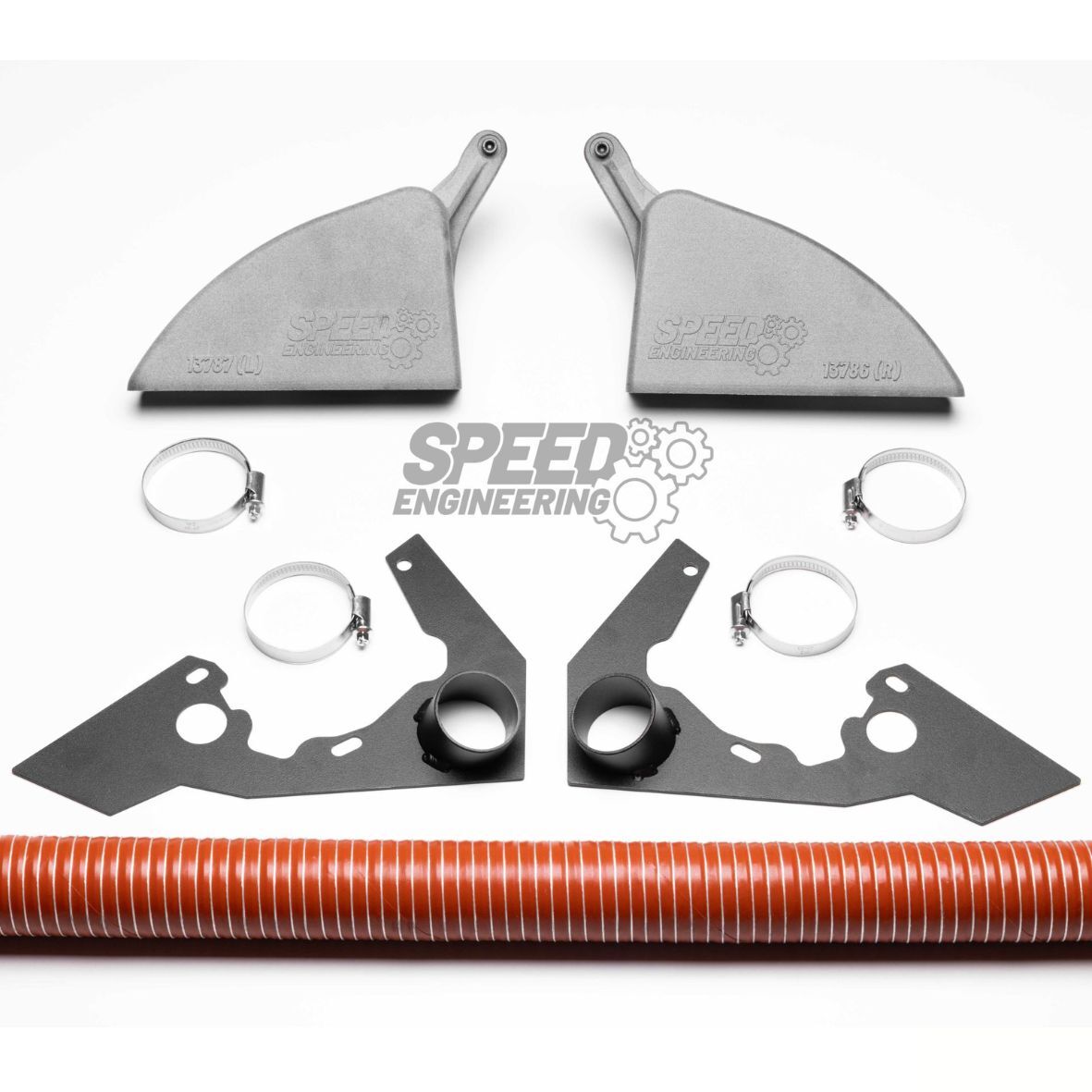

 Included in the scope of delivery:

• 1x Anchor plate left
• 1x anchor plate right
• 1x inlet duct left
• 1x inlet duct right
• 3x air hose = 3 meters
• 4x hose clamps

This article is suitable for

• Hyundai I30N facelift and pre-facelift
