Are you regularly out on the track and pushing your GR Yaris to the limit? Then we also have the right thing for you to cool your brake system!

Air duct inlet:

The inlet is located in a bulge under the vehicle and is also not the lowest point of the vehicle. We have deliberately decided to retain the original brake cooling system and thus achieve double the cooling capacity instead of reducing the existing one!

Air duct outlet:

We channel the airflow towards the center of the brake disc to use the turbine effect to cool the disc from the inside out. In doing so, we direct the air at the disc at an angle that does not lead to any scattering losses so that the air volume can be used as efficiently as possible. The outlet is attached to the wishbone so that the hose hardly moves at all.

Air hose:

This design allows us to use a very short hose that hardly bends and is not kinked. As a result, we were able to make the hose small in diameter and still have an enormous cooling capacity. The hose is virtually wear-free, as it does not move with the steering wheel angle, but remains on the wishbone.

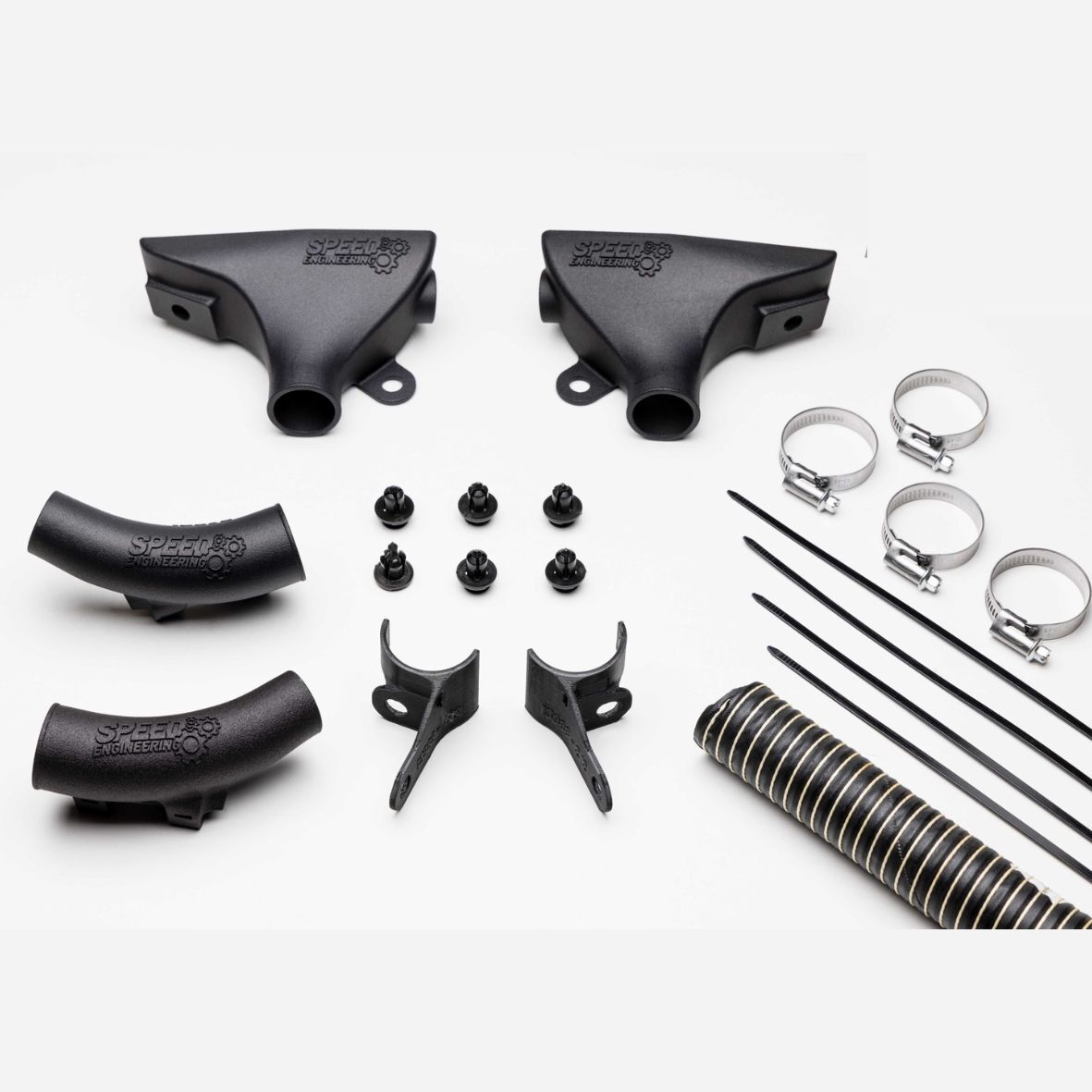

Included in the scope of delivery:

• 1x air duct inlet for the front axle 1x left
• 1x air duct inlet for the front axle 1x right
• 1x anchor plate for the front axle 1x left
• 1x anchor plate for the front axle 1x right
• 1x air hose 0.5m
• 4x hose clamp
• 6x mounting clips
• 2x hose guide

This article is suitable for

• Toyota GR Yaris
