A generally known problem: Your TTRS is fast! That in itself is not the problem, but the heat generated on the front axle by braking is. With this kit, we have found a solution to cool your brakes better.

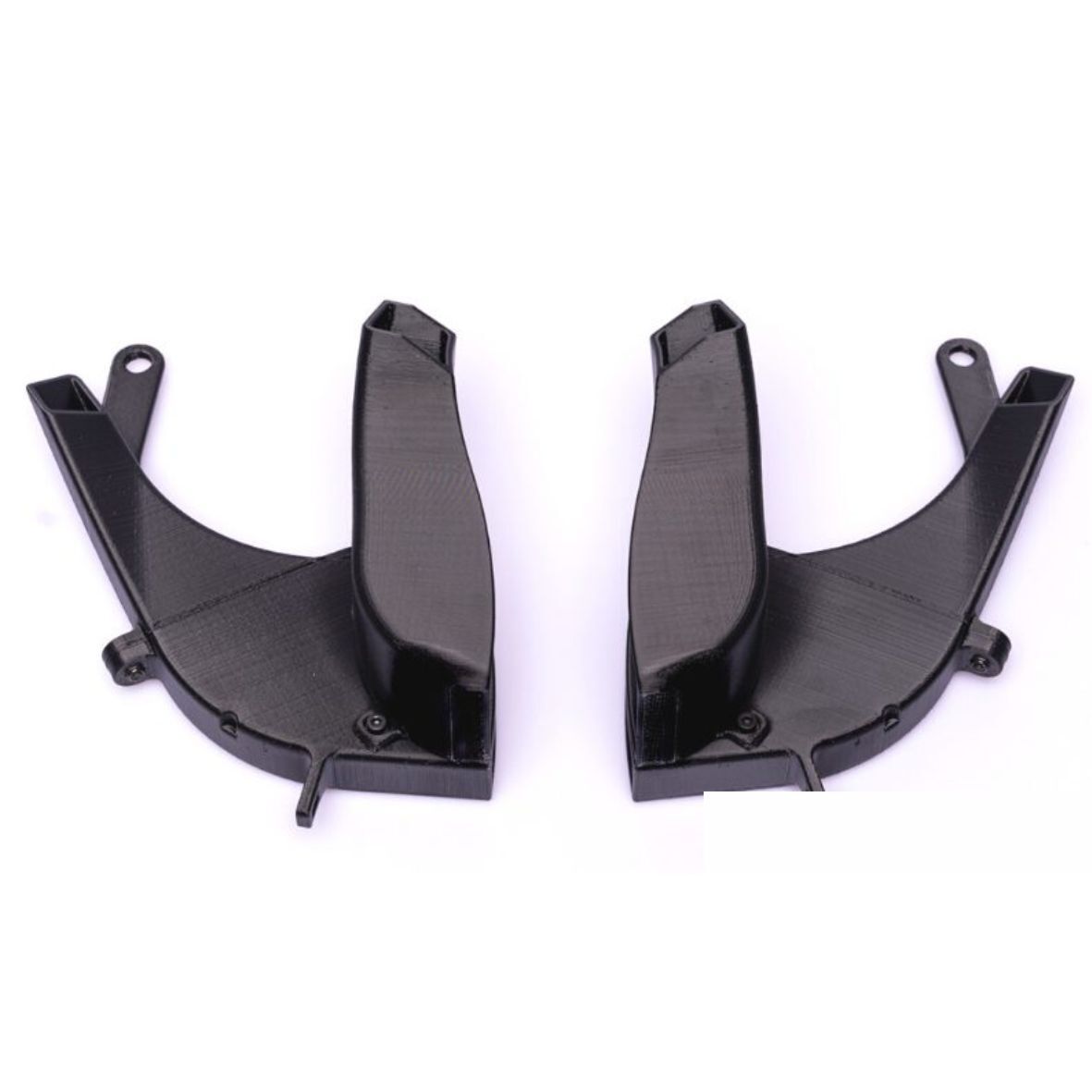

The TTRS 8S have an air duct in front of the wheel to direct the air into the wheel arch. To prevent the air from swirling randomly in the wheel arch, we have developed a double air duct that can be fitted with minimal effort.

The brake disk must be supplied with air as centrally as possible. The brake disk of the TTRS 8S has a large pot with existing openings on the anchor plate. We have therefore refrained from developing a classic anchor plate. However, in order to use the turbine effect of the brake disc, the duct is mounted on the wishbone, which flows to the center of the disc regardless of the wheel position. It is simply attached using existing locking pins and without any permanent changes to the vehicle.

*Attention: There are many variants of the anchor plates. We recommend machining/cutting the anchor plate or dismantling the anchor plate.

Included in the scope of delivery:

• 1x air duct for the left front axle
• 1x air duct for the front axle on the right

Article is suitable for

• Audi TTRS 8S
